▶滾剪类

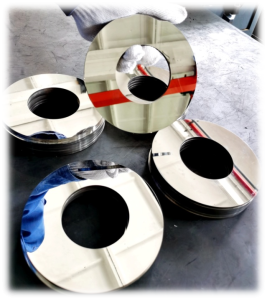

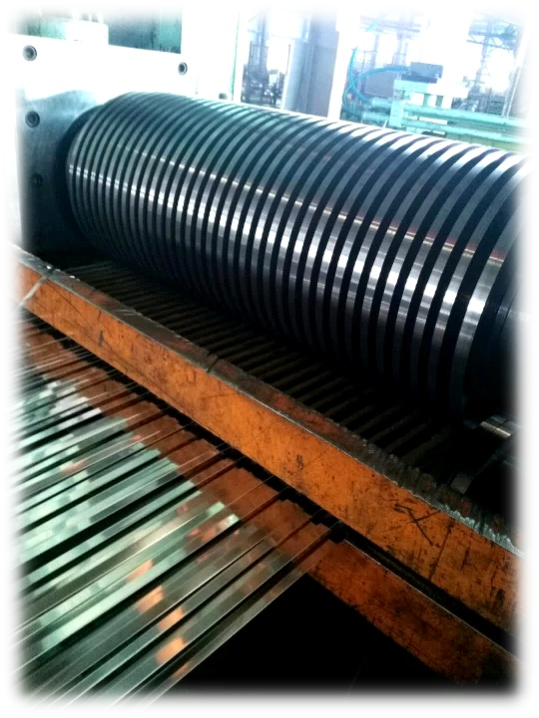

圆盘刀：用于冶金、有色金属、非晶、电子、轻工、造船、食品包装等行业各种规格带材的分切。

精度：平面度、平行度≤0.002mm，表面粗糙度达14级（镜面）。

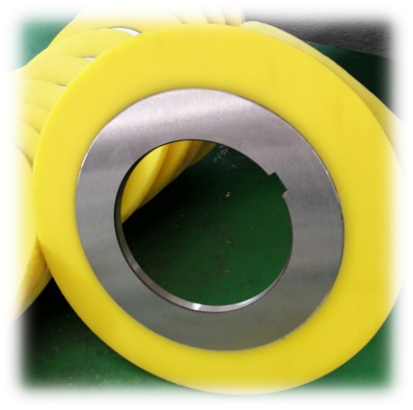

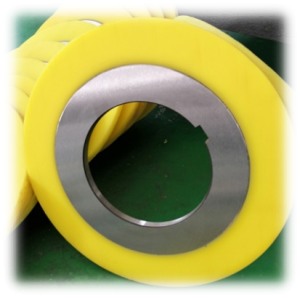

包胶刀垫：与圆盘刀组合使用，用于确定成品带材的宽度尺寸，并使分切后的带材顺利脱离刀口。

精度：金属刀垫的平面度、平行度≤0.003mm。

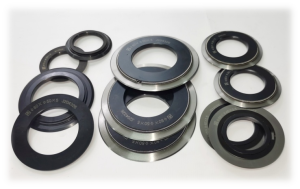

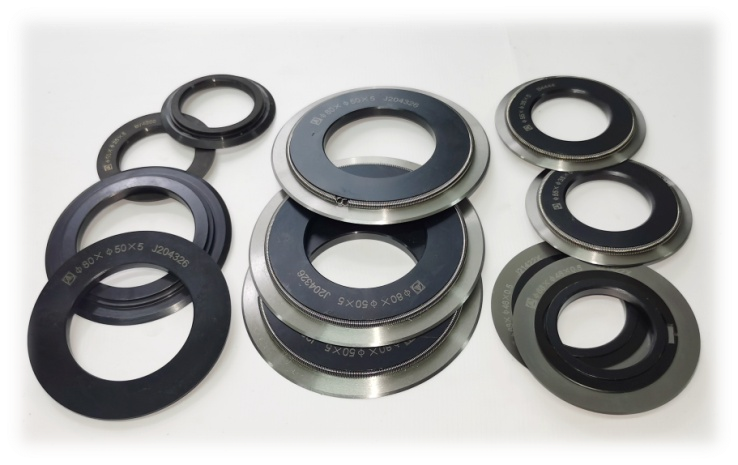

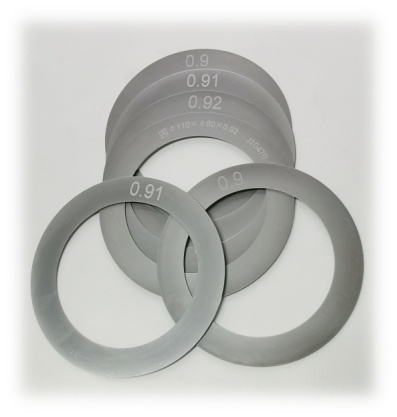

刀垫：与圆盘刀组合使用，用于确定成品带材的宽度尺寸。

精度：平面度、平行度≤0.002mm。

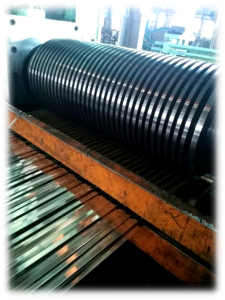

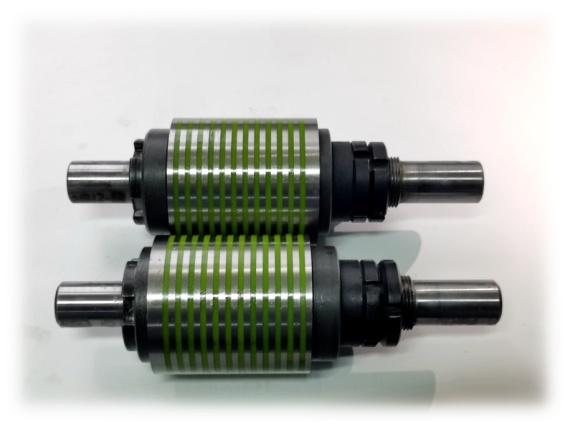

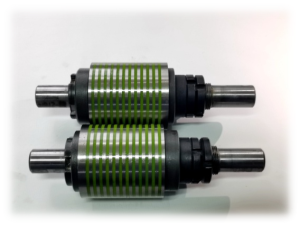

固定刀组：用于精密分切各种有色金属、不锈钢、普碳钢、非晶、医用非金属试条等带材。

精度：轴端径跳≤0.01 mm，端面跳动（偏摆）≤0.008 mm，剪切后的成品带材宽度公差≤0.01mm。

▶分切类：

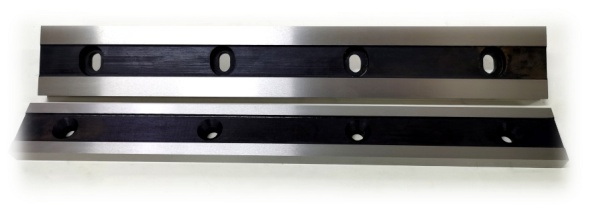

分切刀：用于各类国产、进口分切机分切电容器纸、薄膜、绝缘材料，有色金属带箔，聚丙烯熔喷布和无纺布的刀具。

▶Rolling shear

The circular cutters: all kinds of strip slitting in the metallurgy, the nonferrous metals, the amorphous alloys, the electronics, the light industry, the shipbuilding, the foods packaging and so on.

Precision: flatness, parallelism≤0.002mm, roughness is grade 14 (mirror surface).

The blade shim covered with rubber: to combine with the circular cutters in order to confirm the width of the strip products and break the finished strips away from the blades.

Precision: flatness, parallelism ≤0.003mm.

The blade shim: to combine with the circular cutters in order to confirm the width of the strip products.

Precision: flatness, parallelism ≤0.002mm.

The fixed blade assembly: to slitting all kinds of strip materials in the nonferrous metals, the stainless steel, the plain carbon steel, the amorphous alloys, medical non-metal strips and so on.

Precision: Shaft radial beat≤0.01 mm; End face runout (deflection)≤0.008 mm; The width tolerance of the finished strips ≤0.01 mm.

▶Slitting:

The slitting knife: to slit the capacitor paper, the film, the insulating materials, the nonferrous metal foil strips, the polypropylene melt-blown fabric and the non-woven by all kinds of the domestic and imported slitting machines.
